SOLAR WARE 1000 redefines the PV utility scale solar inverter solution in reliability, efficiency and productivity. TMEIC sets the standard of utility scale installation with its own proprietary and the most advanced multi-level inverter system which brings flat efficiency characteristics providing huge benefit to high DC/AC ratio.

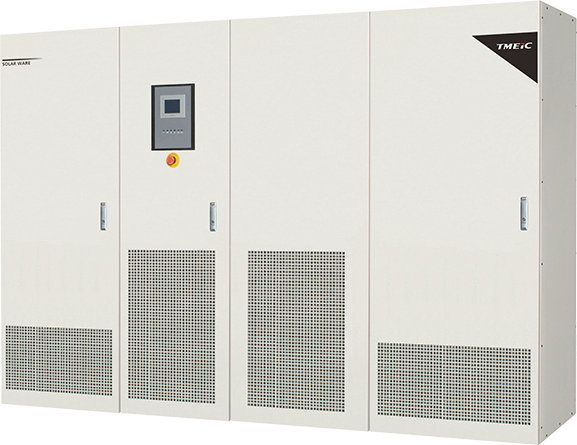

The SOLAR WARE 1000E(J) is a highly engineered 1000V PV inverter suitable for mega-solar power plant deployment. TMEIC's proprietary 3-level topology redefines utility scale PV system with industry's leading efficiency level and smallest footprint.

New technology innovation

  • Proprietary 3-level (Advanced Multi-level) IGBT architecture provides reduction on switching loss and performance enhancement through filter reactor size optimization
  • Inustry's leading 98.7% efficiency
  • Wide DC MPP window allowing string sizing flexibility

Optimization of operational expenditure

  • All detailed fault waveform data are stored in SD memory card
Specifications
PVL-L1000E PVL-L1000E PVL-L1000E PVL-L1000E-H
PVL-L1000E
kW Rating 1000kW 1000kW 1000kW 1000kW
Max. Input DC Voltage 1000V 1000V 1000V 1000V
MPP Range 550~950V 550~950V 550~950V 605~950V
Maximum Efficiency 99% 99% 99% 99%
Region Rated Efficiency 98.30% (IEC)
98.61% (CQC)
98.30% (IEC)
98.61% (CQC)
98.30% (IEC)
98.61% (CQC)
98.40% (IEC)
98.67% (CQC)
Transformer Type Transformerless Transformerless Transformerless Transformerless
Temperature Rating -20 ~ 50°C -20 ~ 50°C -20 ~ 50°C -20 ~ 50°C
Certification Compliance IEC Standard CQC, LVRT IEC Standard CQC, LVRT IEC Standard CQC, LVRT CQC, LVRT
Enclosure IP20 IP20 IP20 IP20
PVL-L1000E-H<br>PVL-L1000E PVL-L1000E-H<br>PVL-L1000E PVL-L1000E-H PEA PVL-L1000E-H PEA
kW Rating 1000kW 1000kW 1000kW 1000kW
Max. Input DC Voltage 1000V 1000V 1000V 1000V
MPP Range 605~950V 605~950V 605~950V 605~950V
Maximum Efficiency 99% 99% 98.7% 98.7%
Region Rated Efficiency 98.40% (IEC)<br>98.67% (CQC) 98.40% (IEC)<br>98.67% (CQC) 98.3% 98.3%
Transformer Type Transformerless Transformerless Transformerless Transformerless
Temperature Rating -20 ~ 50°C -20 ~ 50°C -20 ~ 50°C -20 ~ 50°C
Certification Compliance CQC, LVRT CQC, LVRT IEC Standard, PEA IEC Standard, PEA
Enclosure IP20 IP20 IP20 IP20
