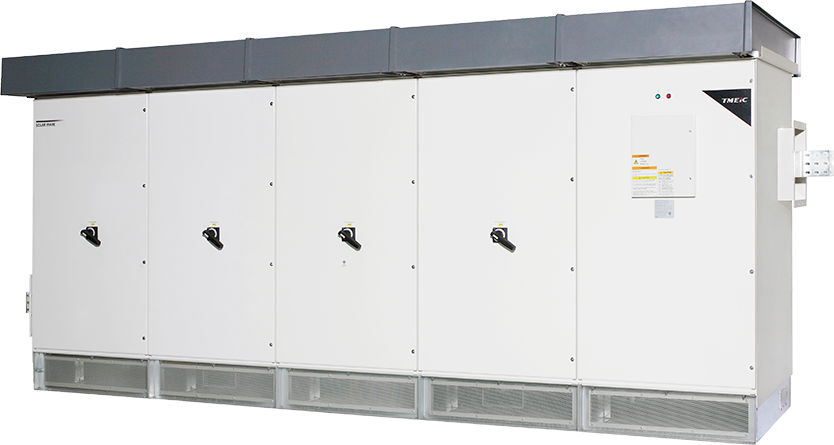

SOLAR WARE 2700 is one of the largest central PV inverter in the 1500V power class. The first heat-pipe based hybrid cooling technology implemented in utility-scale PV inverter solution providing optimal opex model.

New technology innovation

  • Proprietary 3-level (Advanced Multi-level) IGBT architecture provides reduction on switching loss and performance enhancement through filter reactor size optimization
  • Industry leading 98.8% efficiency

World´s first heatpipe technology in utility-scale PV inverter

  • Utilizing TMEIC heat pipe technology, the inverter runs without fan operation up to 50% load
  • Heatpipe cooling significantly simplifies thermal management, because it uses fewer parts and only a slow-speed fan with a heat pipe heat sink

Easy System Integration

  • Full direct bus connection both on DC and AC side provides easy installation on-site
Specifications
PVH-L2700ER PVH-L2700ER PVH-L2700ER PVH-L2700GR
kW Rating 2700kW 2700kW 2700kW 2700kW
Max. Input DC Voltage 1500V 1500V 1500V 1500V
MPP Range 875~1300V 875~1300V 875~1300V 800~1300V
Maximum Efficiency 98.8% 98.8% 98.8% 98.8%
Region Rated Efficiency 98.5% 98.5% 98.5% 98.5%
Transformer Type Transformerless Transformerless Transformerless Transformerless
Temperature Rating -20 ~ 50°C -20 ~ 50°C -20 ~ 50°C -20 ~ 50°C
Certification Compliance IEC Standard IEC Standard IEC Standard UL1741/IEEE1547
Enclosure IP44/IP54 (Electronic Circuit) IP44/IP54 (Electronic Circuit) IP44/IP54 (Electronic Circuit) NEMA3R
PVH-L2700GR PVH-L2700GR
kW Rating 2700kW 2700kW
Max. Input DC Voltage 1500V 1500V
MPP Range 800~1300V 800~1300V
Maximum Efficiency 98.8% 98.8%
Region Rated Efficiency 98.5% 98.5%
Transformer Type Transformerless Transformerless
Temperature Rating -20 ~ 50°C -20 ~ 50°C
Certification Compliance UL1741/IEEE1547 UL1741/IEEE1547
Enclosure NEMA3R NEMA3R
