1.2 kV, 4,000 kVA

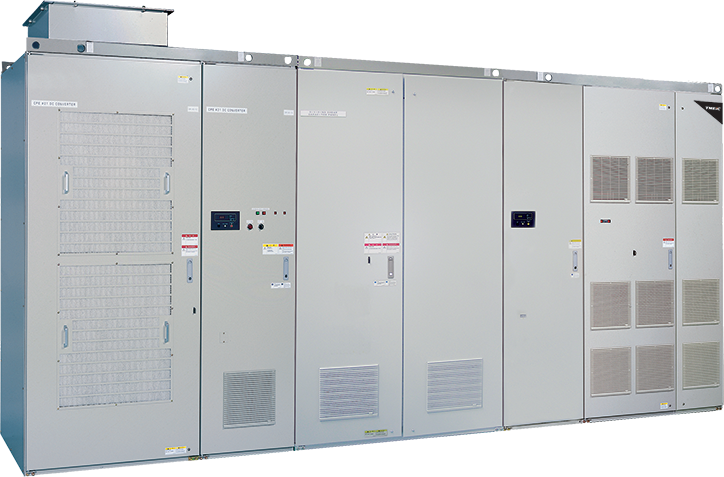

The TMdrive-30 is a medium power, 1,250 V AC drive. The AC-DC converter is available in three types: a diode non-regenerative converter, a thyristor regenerative converter, and an IGBT regenerative converter.

The inverters have a modular three-level phase leg assembly containing the IGBTs, heat pipe cooling assembly, and IGBT gate driver circuit board. The modules are mounted on heavy-duty slides that allow easy access for maintenance.

The output frequency is variable from 0 to 120 Hz, and power levels up to 4,000 kVA are available.

TMdrive-30 Features and Benefits
Design Feature
Customer Benefit

Draw out phase leg assemblies

  • Draw out design enables a mean time to repair of 30 minutes
  • Each assembly contains IGBTs, heat pipe cooling plate, and IGBT gate driver circuit board

Heat pipe cooling technology

Reduction in size of the power bridge and audible noise generated by the cooling fans.

Inverter based capture buffers for fault conditions and process events

Provides high-resolution (microseconds) data capture for analysis of inverter faults or process events

Ethernet interface for configuration and monitoring

High-performance data exchange for drive configuration and trending of process variables
