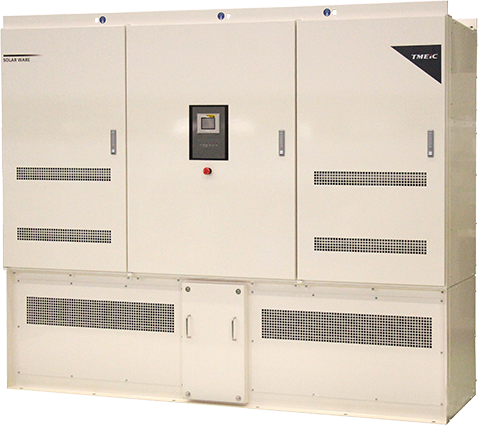

SOLAR WARE 2220 is a state-of-the-art 1500V Indoor PV inverter designed specifically for utility-scale solar power plant deployment. Boasting a compact design and best in class conversion efficiency, Solar Ware 2220 delivers dependability and quality at a competitive price.

Features

  • High efficiency (98.7%)
  • Wide MPPT model (2.22MW/2.22MVA)
  • Best-in-class and compact size (1.4MVA/M2)
  • No derating up to 50°C
  • VAR mode for night operation
  • Negative grounding (optional)
  • DC Box integrated
  • Safety function of DC input circuit system
Specifications
PVH-L2220E PVH-L2220E PVH-L2220E
kW Rating 2222kW 2222kW 2222kW
Max. Input DC Voltage 1500V 1500V 1500V
MPP Range 800~1300Vdc 800~1300Vdc 800~1300Vdc
Maximum Efficiency 98.8% 98.8% 98.8%
Region Rated Efficiency 98.6% 98.6% 98.6%
Transformer Type Transformerless Transformerless Transformerless
Temperature Rating -20 ~ 50°C -20 ~ 50°C -20 ~ 50°C
Certification Compliance IEC62109-1,2/IEC61000-6-2,4, CQC IEC62109-1,2/IEC61000-6-2,4, CQC IEC62109-1,2/IEC61000-6-2,4, CQC
Enclosure IP21 IP21 IP21
