Online Data Gathering System

ODG gathers all data on the TC-net100 high speed LAN and displays the results on a trend graph screen. This system is a Server Client system. The server PC is for data sampling and data filing; and the client PC displays and operates the ODG system.

Features of ODG

  • Collect all I/O data on the TC-net100*1 common memory with 1 msec scan rate.
  • No limitation on the number of sampled data; the number depends on the capacity of the related server computer.
  • Historical Trend display.
  • Displays collected data. Parallel Display and Overlay Display are available.
  • Real Time Trend Display

*1 Live data display. Parallel Display and Overlay Display are available.
*2 Real Time Trend Display and Historical Trend Display can be changed with one click on the menu bar icon.

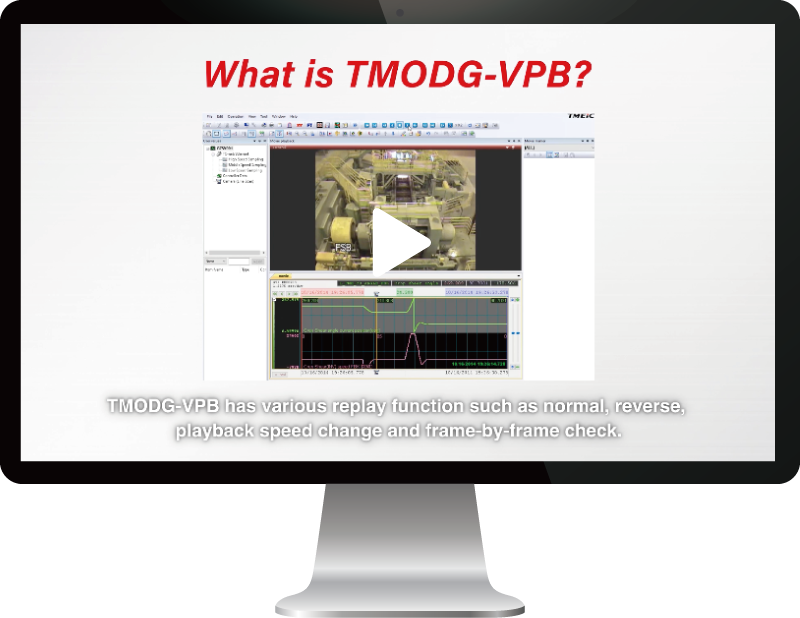

Video Playback(VPB) function
You will be able to check the collected data and system behavior synchronously, and save time for troubleshooting, quality improvement, and productivity improvement.
