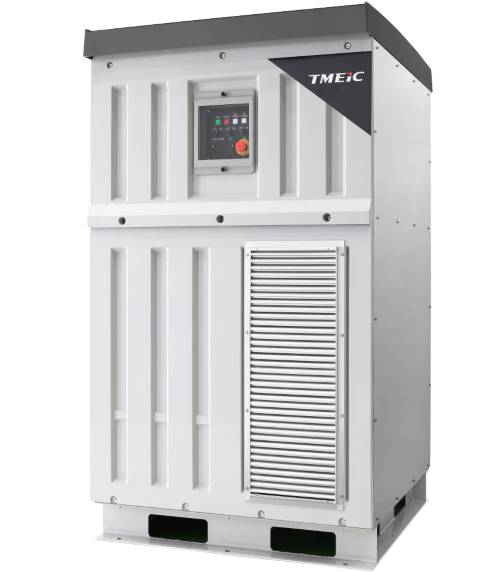

Battery Energy Storage Systems (BESS)
- Highly Efficient Bi-Directional Inverter
- Maximum Efficiency 98.5% (Target)
- +/-2500kW Active Power

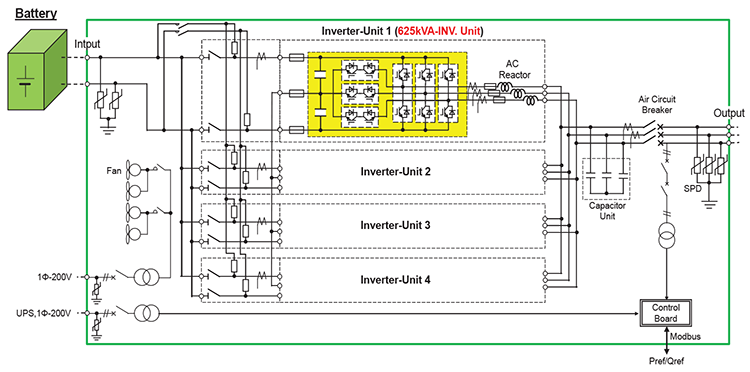

Preliminary Block Diagram
General Specifications
| Electrical (Under planning) | |
|---|---|
| Output Rating | Active Power +/-2500kW, Reactive Power pending, (Apparent capacity: 2500kVA) |
| DC Voltage | 750V~1250V (Target) |
| AC Voltage | 480V (Target) |
| Frequency | 50/60 Hz ±3% |
| Maximum Efficiency | 98.5% (Target) |
| Main Circuit | 3-Level |
| Isolation Transformer | External |
| Cooling Method | Advanced hybrid cooling (fan + heat pipe heat-sink) |
| Communication Method | Modbus, Ethernet |
| Environment | |
|---|---|
| Installation | Outdoor (Depending on the installation environmental condition and the use condition) |
| Ambient Temperature | -5°C ~ 40°C |
| Relative Humidity | 5% ~ 95% or less |
| Altitude | 1000m or less |
