This product is no longer in production. TMEIC continues to offer support and service for existing customers.

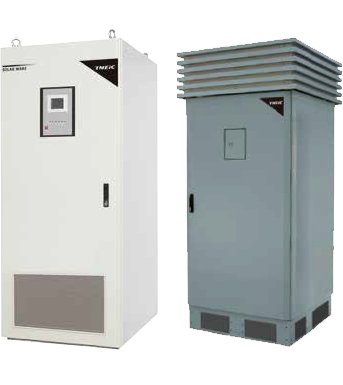

TMEIC's utility scale inverters include the latest interconnection technology. The SOLAR WARE 100 is an advanced multilevel inverter system offering up to 100 kW, with an operating range of 320 ~ 550 V. TMEIC's proprietary optimized cooling system eliminates the need for a fan, increasing reliability. The unit has NEMA3R certification, for outdoor installation.

96.7% Efficiency

SOLAR WARE 100 operates at 96.7% maximum efficiency. With high efficiency and robust design, TMEIC can significantly maximize array performance and uptime.

High Efficiency at Low-Load Conditions

This state of the art piece of equipment has been highly engineered and designed for high efficiency AD/DC conversion at low-load conditions, allowing faster return on investment

Fanless Design

TMEIC introduces a new and exciting thermal solution with this inverter. The IGBT-fin cooling design eliminates the cooling fan, leading to best-in-the-industry reliability and PM cycle.

Advanced Multilevel Inverter – 56% Switching Loss Reduction

The SOLAR WARE 100 advanced multilevel inverter uses a new circuit topology to create 3 output voltage levels, with switching loss reduced by 56%. Grid connection features include:

  • Power factor control
  • Reactive/Active power control
  • Fault ride through - Voltage ride through (low voltage ride through)
    • Frequency ride through
  • TMEIC’s proprietary anti-islanding technique utilizes a slip mode frequency shift method
Specifications
PVF-T0100 PVF-T0100 PVF-L0100 PVF-L0100
kW Rating 100kW 100kW 100kW 100kW
Max. Input DC Voltage 600V 600V 600V 600V
MPP Range 320~600V 320~600V 320~600V 320~600V
Maximum Efficiency 96.20% 96.20% 97.3% 97.3%
Region Rated Efficiency 95.70% 95.70% 97.0% 97.0%
Transformer Type Isolation Transformer Isolation Transformer Isolationless Isolationless
Temperature Rating -5 ~ 40°C -5 ~ 40°C -5 ~ 40°C -5 ~ 40°C
Certification Compliance JEC JEC JEC JEC
Enclosure IP2X IP2X IP2X IP2X
PVF-T0100R PVF-T0100R
kW Rating 100kW 100kW
Max. Input DC Voltage 600V 600V
MPP Range 320~600V 320~600V
Maximum Efficiency 96.20% 96.20%
Region Rated Efficiency 95.70% 95.70%
Transformer Type Isolationless Isolationless
Temperature Rating -5 ~ 40°C -5 ~ 40°C
Certification Compliance JEC JEC
Enclosure IP44 IP44
