Our 1500V and 1000V compact PV inverters, MV transformers, switchgear and other products create flexible container-based solutions (up to 10MW) that are uniquely adapted to meet a wide range of needs.
Features & Benefits:
- Flexible designs that include the following package solutions:

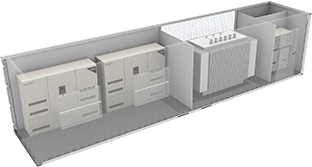

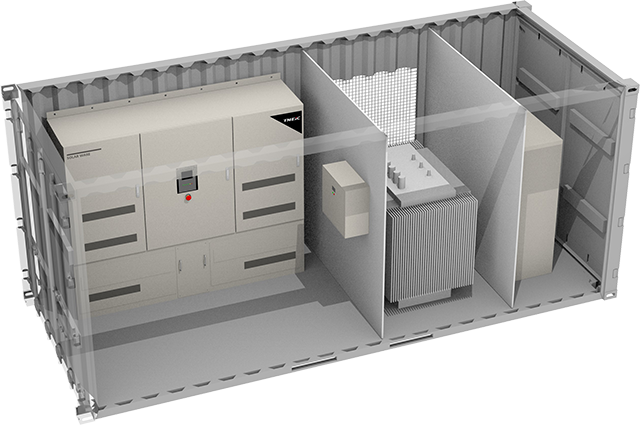

- AC Station: Comprised of PV inverter, transformer and switchgear. All containerized.

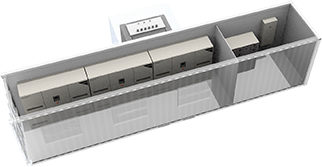

- L-H Combo & Inverter Package: Comprised of multiple PV inverters and switchgears to attain large capacity output.
- Inverter Package: Containerized inverter-only solution for those who wish to procure transformers and switchgears separately.
- Minimizes construction and installation time and overall cost.
- Protection from harsh environments.
| Package Solution | AC Station | L-H Combo | Inverter Package | ||||||||
| 2.22MW | 2.55MW | 4.44MW | 5.10MW | 6.66MW | 7.65MW | 8.88MW | 10.20MW | 2.22MW | 2.55MW | ||
|
|
|
|
||||||||
| Container | Type | ISO Standard size 20’ | ISO Standard size 40’HC | ISO Standard size 40’HC | ISO Standard size 10’HC | ||||||
| Outline Dimensions (L×W×H, m) |
6.1 × 2.4 × 2.6 | 12.0 × 2.4 × 2.9 | 12.0 × 2.4 × 2.91 | 3.0 × 2.4 × 2.9 | |||||||
| Inverter | Type | PVH-L2220E | PVH-L2550E | PVH-L2220E | PVH-L2550E | PVH-L2220E | PVH-L2550E | PVH-L2220E | PVH-L2550E | PVH-L2220E | PVH-L2550E |
| Quantity (pc) | 1 | 1 | 2 | 3 | 3 | 3 | 4 | 4 | 1 | 1 | |
| DC Box | Integrated in Inverter | Integrated in Inverter | Integrated in Inverter | ||||||||
| MV Transformer | Grid Voltage | 11 / 22 / 34.5kV ± 2.5% | 11 / 22 / 34.5kV ± 2.5% | – | |||||||
| Number of Phase | Three - phase | Three - phase | – | ||||||||
| Standard Compliance | IEC 60076 | IEC 60076 | – | ||||||||
| Rated Voltage | 12 / 24 / 36kV | 12 / 24 / 36kV | – | ||||||||
| Number of Phase | Three-phase | Three-phase | – | ||||||||
| Model | Breaker protection as standard | Breaker protection as standard | – | ||||||||
| Rated Currrent | 400A as standard | 400A as standard | – | ||||||||
| Standard Compliance | IEC 62271-1, -100, -102, -105, -200 | IEC 62271-1, -100, -102, -105, -200 | – | ||||||||
| LV Panels | Low voltage distribution panels, outlets (Type depends on the requriments) |
Low voltage distribution panels, outlets (Type depends on the requriments) |
Low voltage distribution panels, outlets (Type depends on the requriments) |
||||||||
| Cooling Method | Louvers and fans | Louvers and fans | Louvers and fans | ||||||||
